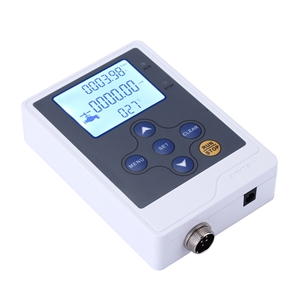

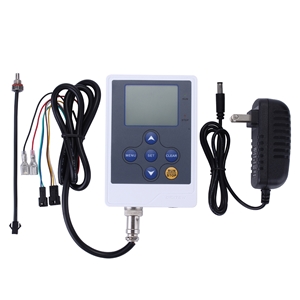

DFC15 LCD Water Liquid Flow Sensor Digital Display Flowmeter Quantitative Controller

DFC15 LCD Water Liquid Flow Controller

+ -

This liquid flow controller (DFC15) is a device used to measure and control the flow of liquids, DFC15 can control solenoid vale on/off when the flow reach to setting value. It is suitable for hall effect flow sensor. large LCD screen can display the flow rate, volume, and the temperature of the liquid. DFC15 have wide application for swimming poor, Water Dispenser, coffee machine, drip irrigation system, water meter, etc.


Quantitative control

Controller will turn off the solenoid value automatically when flow reach to the setting value you desire

Monitor flow rate

Display the REAL-TIME volume of liquid which passes per minute

Work with all hall effect flow sensor

It can work various different flow sensor through adjust the K value

Water meter

LFC15 can be used to measure the volume of water

Adjustable accuracy

Calibrate the accuracy through adjust the K parameter

Temperature monitor

Come with temperature sensor, it can measure liquid temperature

Easy-to-Read Front-Panel Liquid Crystal Display

Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance



Controller Power Requirement: 12VDC

Power Adapter: Input: 100-240VAC,

                          Output: 12VDC, max 2A

Adapter lead length: 1m

Measuring Accuracy:  ±1%

Output for Solenoid valve:  12VDC, max 5A

Temperature Sensor: 0-100/32-212, NTC3950,

                                Accuracy: ±1/±1 thread: M8

Max Total Volume :  999999 G/L

Quantitative Range:  0-9999 G/L

Flow Rate Range:  0-9999.99/LPM(GPM)

Cable Length :  1m

Dimensions:  88mmx126mmx30mm

Weight:  200g

Operation Environment: Temperature: 0-50/32-122

                                           Relative Humidity: <85%
