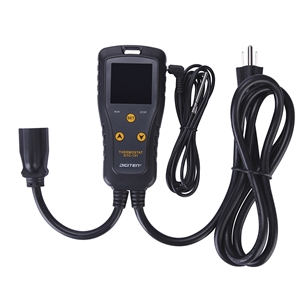

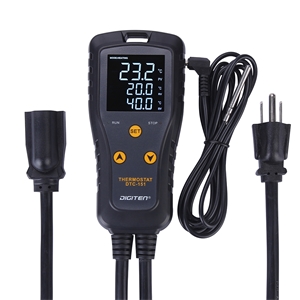

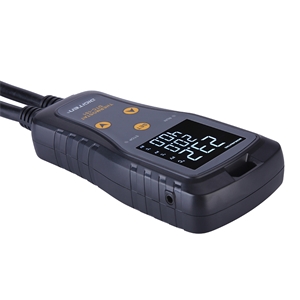

DTC151 LCD Thermostat Pre-wired Temperature Controller for Heating and Cooling

DTC151 15A Thermostat Pre-wired Temperature

+ -

The DTC-151 Thermostat is one-stage, digital temperature controls. It can control device that is up to 15A. The large, lighted LCD screen display is easy to read. The case is designed for human engineering. Temperature sensor is waterproof, high quality, high-accuracy.


  • Large LCD screen;

  • One US outlet, control heating or refrigeration equipment;

  • Temperature unit is changed for Centigrade or Fahrenheit;

  • Max current: 15A

  • Max output load: 1650W@110V, 3000W@220V;

  • Easy to use and program, Plug and play device;

  • Built-in a temperature correction function;

  • Delay starting protection for refrigerating compressor;

  • High and low temperature alarms are available;

  • Over-temperature and sensor fault alarm

  • Heating/Cooling differential could be set separately for refrigeration and heating to protect temperature controller from violent change;

  • Can use heating or cooling function separately.


  • Power Supply: 100-240VAC 50/60HZ

  • Temperature Control Range: -50~120℃,-58~248℉

  • Temperature Control Mode: Heating and Cooling

  • Temperature Resolution: 0.1℃, 0.1℉

  • Temperature Accuracy: ±1℃,1℉

  • Buzzer Alarm: High and Low Temperature Alarm

  • Input sensor: NTC Waterproof, sensor length:Approx 2m(6 fts)

  • Input Power Cable Length: 1.5m (4.5ft)

  • Output Power Cable Length: 25cm

  • Controller Dimension: 137*65*28mm

Packaging include

1 x DTC-151

1 x NTC sensor

1 x Manual
