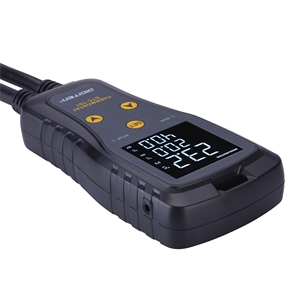

DTC101 LCD Thermostat Pre-wired Temperature Controller for Heating and Cooling

DTC101 Thermostat Pre-wired Temperature

+ -

The DTC-101 Thermostat is one-stage, digital temperature controls. The large, lighted LCD screen display is easy to read. The case is designed for human engineering. Temperature sensor is waterproof, high quality, high-accuracy.


  • Large LCD screen;

  • One US outlet, control heating or refrigeration equipment;

  • Temperature unit is changed for Centigrade or Fahrenheit;

  • Max current: 10A

  • Max output load: 1100W@110V, 2200W@220V;

  • Easy to use and program, Plug and play device;

  • Built-in a temperature correction function;

  • Delay starting protection for refrigerating compressor;

  • High and low temperature alarms are available;

  • Over-temperature and sensor fault alarm

  • Heating/Cooling differential could be set separately for refrigeration and heating to protect temperature controller from violent change;

  • Can use heating or cooling function separately.


  • Power Supply: 100-240VAC 50/60HZ

  • Temperature Control Range: -50~120℃,-58~248℉

  • Temperature Control Mode: Heating and Cooling

  • Temperature Resolution: 0.1℃, 0.1℉

  • Temperature Accuracy: ±1℃,1℉

  • Buzzer Alarm: High and Low Temperature Alarm

  • Input sensor: NTC Waterproof, sensor length:Approx 2m(6 fts)

  • Input Power Cable Length: 1.5m (5ft)

  • utput Power Cable Length: 25cm

  • Controller Dimension: 137*65*28mm

Packaging include

1 x DTC-101 thermostat

1 x NTC sensor

1 x Manual
