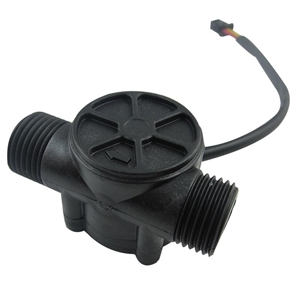

G1/2" 1-30L/min Water Flow Hall Sensor Switch Meter Flowmeter Counter

Features & Specifications

• Waterproof,Heat resistance,pressure resistance,cold resistance.

• Easy to install.

• Frequency: F=7.5 * Q (L / Min) error: ± 2% voltage :3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters,
  F=onstant  * units of flow (L / min) * time (seconds).

• Flow range:1-30L/min

• Minimum rated working voltage:DC4.5 5V-24V

• Maximum current:15 mA(DC 5V)

• Working voltage range:DC 5～18 V

• Load capacity:≤10 mA(DC 5V)

• Operating Temp:≤80℃,Operating humidity:35%～90%RH

• Allow compression:Water pressure 1.75 Mpa below

• Storage Temperature:-25～+80℃

• Storage humidity:25%～95%RH

• Output Waveform:Square Wave,output pulse singal.

• ROHS Compliant.

• Cable length:15cm.
